布面吸毛箱系列

一、 用途

该系列产品是由我公司在行业内最先设计制作的专利系列产品，经过多年的实践积累已能够满足：针织、梭织、毛纺、皮革、呢绒、化纤、混纺、橡塑织物、玻璃纤维布、纱巾布等产业。结合纺织品印花、染色、整理工艺要求应用在：坯布烧毛前后、退浆前、丝光前、染色前、印花前、植绒前、涂层前、磨毛后、定型前后，根据织物特性选用组合拍打或刷毛处理或真空吸尘或气流等方式，通过自制专利高压排尘风机，确保线丝、毛絮不会吸附缠绕叶片，快速进入集尘箱体或储尘袋集中储尘;以达到减少水洗工序，减少织物印花、染色、涂层瑕疵。

我公司产品涵盖：圆网印花吸尘、平网印花吸尘、针织印花吸尘、四面弹性针织印花卧式导带吸尘、包括织物翻布、烧毛、退浆、丝光、染色、印花、定型、磨毛、涂层、植绒、提花、割绒等各工艺段的吸尘装置，能够叠加组合用于麂皮绒、桃皮绒、革基布、涤锦棉磨毛布等特殊面料的深加工刷毛/吸毛处理。

二、 技术特点

1、 该产品适用性强;能够根据要求，重叠组合或匹配进出布架，形成刷毛机系列产品。

2、 机械幅宽：1200-4000mm

3、 机械车速：15-80m/min

4、 辊：碳素纤维辊、陶瓷纤维辊、尼龙纤维辊

5、 优点：刷毛后的织物手感柔和，后续加工毛羽更均匀。

6、 可选用PLC对车速、风量、张力进行全程控制。

7、 除尘采用专利高压风机和除尘箱体结合的方式，达到快速高效的除尘效果。

Cloth suction series

1. Application

This series of products are designed by our company the first independent production and intellectual property rights, after many years practice proves that already can satisfy: knitting, weaving, wool, leather, rubber, wool, chemical fiber, blending textiles, sheer glass fiber cloth industries. Combined with textile printing and dyeing, whole process requirements, In order to reduce the washing process, reduce the fabric printing, dyeing, coating defects.

Our products include: rotary screen printing device, vacuum flat screen printing device, vacuum suction device, four elastic knitting printing knitting printing device, including horizontal band vacuum singeing, desizing, mercerizing, dyeing and setting the whole special suction device, sanding machine shaping machine cloth after universal cloth dust collection device, including can the optional frame into the package and a dual-purpose cloth, flatulence rolling, center rewinding for suede, leather fabric, cloth fabric, brush the hair suction machine machine and patented equipment.

2. Technical features

①. Product adaptability is strong, can customize according to the customer.

②. Common used nominal width:1200-4000mm.

③. Processing speed:15-80m/min.

④. Roller：Carbon fiber roller/ Ceramic fiber roller/ Nylon thread fiber roller

⑤. feel very natural and downy dresses the effect is more uniform.

⑥. Brush machine adopts PLC process control of speed, air volume, and tension.

⑦. Bust removal by the combined way of patent high-pressure blower and dust removal cabinet, to achieve fast and efficient dust removal effect.

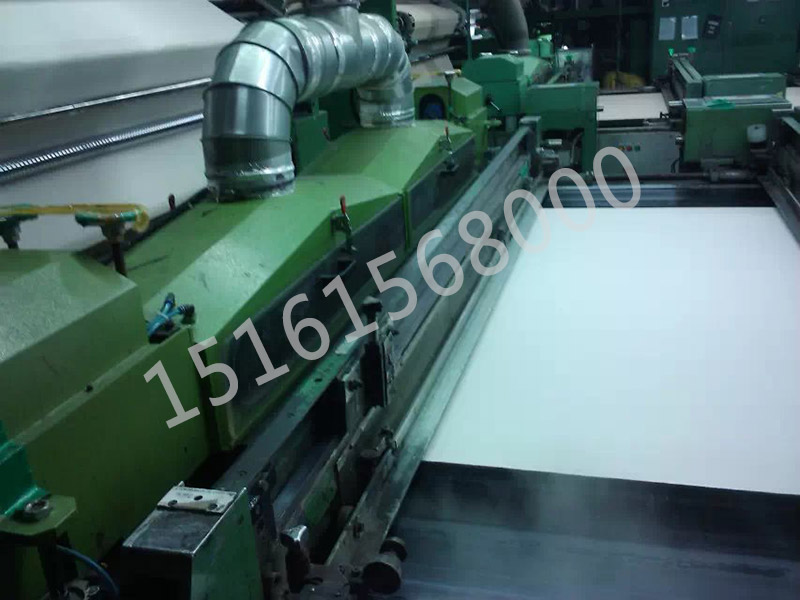

图为印花机专用平幅单面导带吸毛箱，其主要针对四面弹等低张力针织印花而开发的特定产品。

The picture shows the special flat single side guide belt wool suction box for printing machine, which is mainly developed for low tension knitting printing such as four side elasticity.

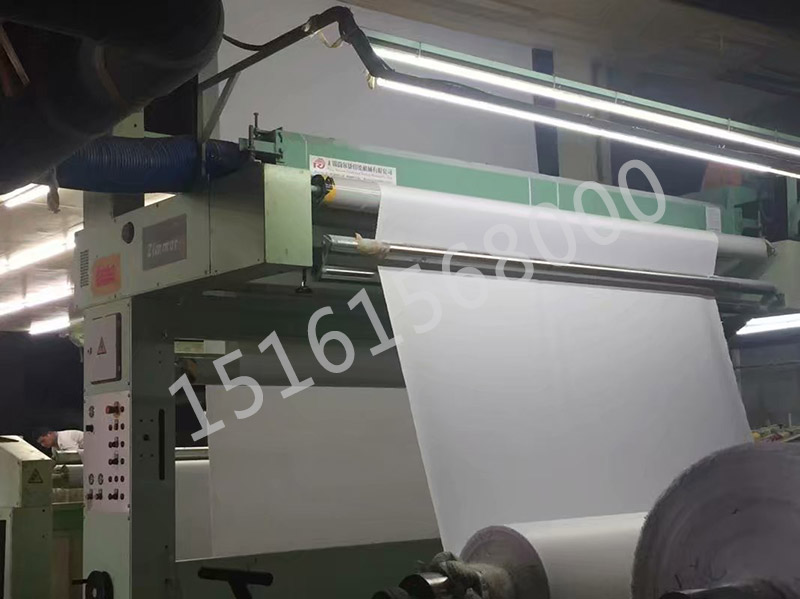

图为传统和数码印花机专用平幅单面具备开幅功能的吸毛箱，其主要针对针织、纯棉以及化纤等薄织物精密吸尘工艺而设计的专利产品。

The picture shows the traditional and digital printing machine special open width single side hair suction box with stretch function. It is a patented product designed mainly for the precise dust collection process of thin fabrics such as knitting, pure cotton and chemical fiber.

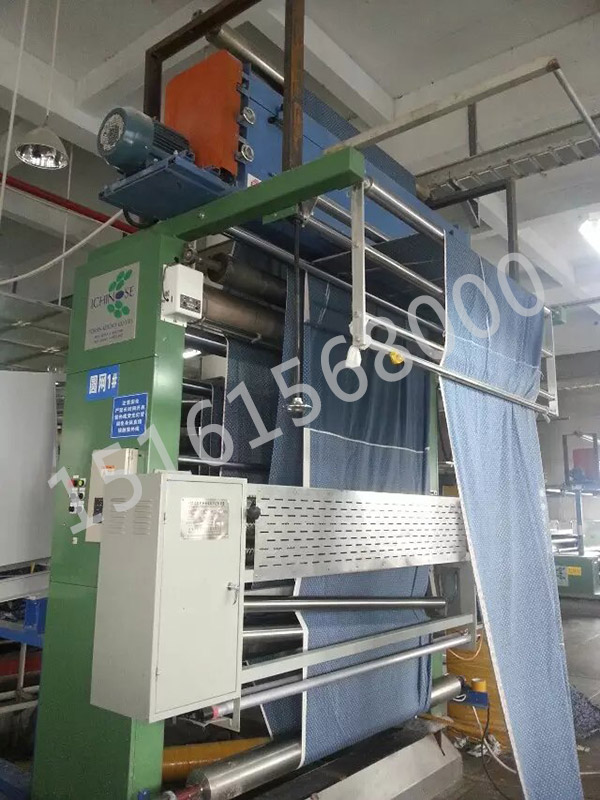

图为竖穿布双面刷毛吸毛箱，其主要针对磨毛布等毛絮较多的面料而设计的专利产品，也适用于纺织染整各个工艺环节。

The picture shows the vertical through cloth double-sided brush wool suction box, which is a patented product designed mainly for the fabric with more wool, such as the wool cloth, and is also suitable for each process of textile dyeing and finishing.
